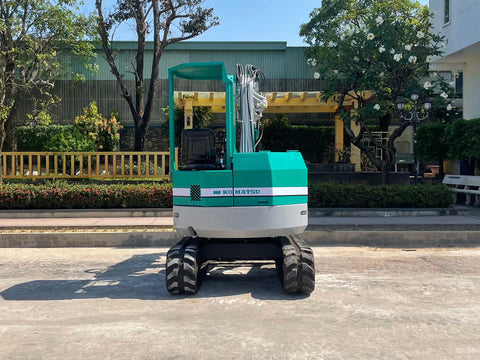

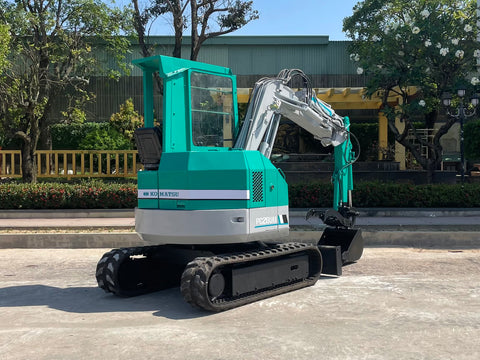

This 1991-built Komatsu PC28UU is a professionally reconditioned mini excavator with its 2,980 Kg (6,571 pounds) operating weight. It only has 3,697 hours, and in great running condition with normal wear and tear as shown on our transparent photos and demonstration video. The machine is powered by a Yanmar-manufactured diesel engine (3D78-1F) which is capable of delivering 23.3 HP. This unit has been modified to adopt Caterpillar (S.A.E) control pattern by default. Reverting to original Komatsu (Japanese) control pattern is also possible via a built-in quick shifter.
This unit has been thoroughly serviced with new hydraulic fluids, new engine oils, new coolant with antifreeze, and new filters (air, fuel, and oil). We have upgraded the excavator with new foot-pedal-controlled hydraulic thumb, new seat & seat belt, new starting battery, new LED headlight, new decals, and vivid Komatsu-green paint. As required by U.S. CBP importing requirements, this unit has undergone strict fumigation and steam cleaning.
This model has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This model is qualified as a zero-tail swing machine with its 1495-mm upper body, 1450-mm overall width, and a tail swing radius of 790 mm (2'7"). This unit comes with single speed travel of 1.2 mph.
With Japanese ingenuity of applying sound-absorbing material to various parts of the machine, low noise performance comparable to that of a passenger car has been achieved. This model is designed for night work and urban areas such as schools and hospitals with noise level rated at 55 dBA @ 30 meter (98'5") and 66 dBA @ 7 meter (23'0"). To operator's ears, noise exposure is rated at only 77 dBA.
- Operation & Maintenance: Available for Customer Only
- Shop & Repair: Available for Customer Only
- Excavator Parts: Available for Customer Only
- Make: Komatsu
- Model: PC28UU
- Serial #: 5533
- Track: Rubber (BRAND NEW) - $2,000 Extra Upgrade Cost
- Year built: 1991
- Hour meter: 3,697
- Origin: Japan
- Operating weight: 2,980 Kg (6,571 lbs)
- Bucket digging force: 2,140 Kg (4,718 lbs)
- Max ground pressure: 0.30 Kg/cm2 (4.3 psi)
- Swing speed: 9.5 rpm
- Swing max slope angle: ? deg.
- Travel speed: 2.0 kmh (1.2 mph)
- Gradeability: 30 deg.
- Make: Komatsu
- Serial #: 09751
- Fuel: Diesel
- Model: 3D78-1F (4-cycle, water-cooled, direct injection)
- No. of cylinders - bore x stroke: ?
- Piston displacement: 1.232 L (75.2 cu.in.)
- Firing order: ?
- Flywheel horsepower: 23.3 HP @ ? RPM
- Max torque: ? Kgm @ ? rpm
- Max speed at no load (high idling) : ? rpm
- Min speed at no load (low idling): ? rpm
- Min fuel consumption: ? g/HP.h
- Alternator: ?
- Starting Motor: ?
- Battery: ?
OEM Working Range
- Overall Length: 3,790 mm (12'5")
- Overall Width: 1,495 mm (4'11")
- Overall Height: 2,380 mm (7'10")
- Backfill Blade Width: 1,495 mm (4'11")
- Backfill Blade Height: 330 mm (1'1")
- Bucket Width: 440 mm (1'5")
- Thumb Width: 280 mm (0'11")
- Track Width: 300 mm (1'0")
- Track Length: 1,950 mm (6'5")
- Track Standard: 300mm (W) x 52.5mm (P) x 80 (L)
- Boom Cylinder: 702 mm (27.6")
- Arm Cylinder: 444 mm (17.5")
- Bucket Cylinder: 424 mm (16.7")
- Thumb Cylinder: 300 mm (11.8")
Our online pricing is NOT inclusive of shipping. We partner with All-Ways Trucking, an Oregon-based nationwide transportation company serving the United States, Canada, and Mexico, as well as international lanes, to ship our machines to all North American destinations.
For residential addresses without loading docks, our trucks are equipped with heavy duty ramps to help our customers unload their machines with ease. Due to liability, our truck drivers are not allowed to operate heavy equipment; hence, it is our customers' responsibility to offload their machines upon delivery.
For Hawaiian & Puerto Rican customers, we partner with H2O Logistics from Carson, CA to provide turn-key shipping service (local pick up, containerization, ocean freight, and final ground delivery) from our Long Beach, CA facility to your island home address.
Upon payment clearance, we will arrange all freight booking, yard loading, and delivery to your final address. Our hours of operation at Long beach, CA facility is Monday to Friday 09:00 AM - 03:30 PM (except for national holidays and weekends).
Due to the current state of our economy with rising inflation, surging fuel prices, and labor shortage, LTL shipping cost has been on the rise since March 2021. Please refer to our shipping estimate tab below for current rates as of June 2022. For pricing accuracy, please provide us with your zip code. Beginning January 1, 2022, we now offer PRICE MATCH program on our shipping costs. If you can find any licensed, bonded, insured, and experienced carriers who can deliver for less, we will match their price!
Shipping Estimates (below 7,000 lbs)
|Los Angeles, CA||$695||Salt Lake City, UT||$1,950|
|San Diego, CA||$795||Boise, ID||$2,095|
|Las Vegas, NV||$1,000||Portland, OR||$2,225|
|San Jose, CA||$1,075||Denver, CO||$2,600|
|San Francisco, CA||$1,075||Seattle, WA||$2,600|
|Sacramento, CA||$1,075||Billings, MT||$2,750|
|Reno, NV||$1,300||Cheyene, WY||$2,875|
|Klamath Falls, OR||$1,695||Spokane, WA||$2,950|
|Phoenix, AZ||$1,250||San Antonio, TX||$2,475|
|El Paso, TX||$1,950||Oklahoma City, OK||$2,550|
|Austin, TX||$2,275||Houston, TX||$2,550|
|Albuquerque, NM||$2,350||Dallas, TX||$2,600|
|Shreveport, LA||$2,750||Atlanta, GA||$3,650|
|Little Rock, AR||$2,995||Charlotte, NC||$3,650|
|Memphis, TN||$3,125||Orlando, FL||$3,995|
|Birmingham, AL||$3,395||Charleston, WV||$4,175|
|Nashville, TN||$3,500||Richmond, VA||$4,425|
|Wichita, KS||$2,595||Indianapolis, IN||$2,995|
|Omaha, NE||$2,595||Milwaukee, WI||$3,125|
|Des Moines, IA||$2,750||St. Louis, MO||$3,450|
|Minneapolis, MN||$2,995||Columbus, OH||$3,525|
|Chicago, IL||$2,995||Detroit, MI||$3,525|
|Washington DC||$4,050||Bridge Port, CT||$4,295|
|Baltimore, MD||$4,175||Boston, MA||$4,550|
|Wilmington, DE||$4,175||Burlington, VT||$4,550|
|Philadelphia, PA||$4,175||Syracuse, NY||$4,675|
|Pittsburgh, PA||$4,175||Portland, ME||$4,950|
|New York, NY||$4,425|
Shipping Estimates (over 10,000 lbs)
|Los Angeles, CA||$750||Salt Lake City, UT||$2,225|
|San Diego, CA||$950||Boise, ID||$2,475|
|Las Vegas, NV||$1,150||Portland, OR||$2,675|
|San Jose, CA||$1,200||Denver, CO||$3,100|
|San Francisco, CA||$1,200||Seattle, WA||$3,100|
|Sacramento, CA||$1,300||Billings, MT||$3,250|
|Reno, NV||$1,475||Cheyene, WY||$3,395|
|Klamath Falls, OR||?||Spokane, WA||$3,375|
|Phoenix, AZ||$1,450||San Antonio, TX||$2,875|
|El Paso, TX||$2,225||Oklahoma City, OK||$2,950|
|Austin, TX||$2,750||Houston, TX||$3,100|
|Albuquerque, NM||$2,750||Dallas, TX||$3,100|
|Shreveport, LA||$3,500||Atlanta, GA||$4,295|
|Little Rock, AR||$3,650||Charlotte, NC||$4,800|
|Memphis, TN||$4,175||Orlando, FL||$4,950|
|Birmingham, AL||$4,295||Charleston, WV||$5,175|
|Nashville, TN||$4,295||Richmond, VA||$5,895|
|Wichita, KS||?||Indianapolis, IN||?|
|Omaha, NE||?||Milwaukee, WI||?|
|Des Moines, IA||?||St. Louis, MO||$3,900|
|Minneapolis, MN||?||Columbus, OH||?|
|Chicago, IL||?||Detroit, MI||?|
|Washington DC||?||Bridge Port, CT||?|
|Baltimore, MD||?||Boston, MA||?|
|Wilmington, DE||?||Burlington, VT||?|
|Philadelphia, PA||?||Syracuse, NY||$5,850|
|Pittsburgh, PA||$5,195||Portland, ME||$6,495|
|New York, NY||?|
FAQ: What is your buying process?
Welcome to our store! You are in the right place if you are looking for Japanese rebuilt compact (mini) excavators! Our excavators are available on either pre-order or in-stock basis. Coming-soon equipment are always provided with estimated date of availability due to complex trans-Pacific ocean logistics and tedious customs clearance process. Available-now inventory are immediately available for pick-up (local customers) or nationwide freight shipping (remote customers). All of our equipment are securely stored at our contracted yard in Long Beach, CA 90813. If you cannot seem to find what you need for your particular project, please also make sure to check out our sold-out section and let us know which machine model and features best suit your need. Or you can always leave us a message via this contact form and let us know more about your specific applications/ projects, excavator weight range, track preference (steel vs. rubber), ... and someone from our team will get in touch with you.
New way to kick the tires! Fun fact. More than 95% of our customers have bought our excavators sight unseen. All of our machines are individually captured with (36) to (40) high-resolution photos and one 4-minute demonstration video. We guarantee that "what you see is what you get" since we never recycle photography and videography across our listings. We have also invested much efforts in researching original manufacturers' equipment specifications (working range, engine details, dimensions, ...) so you do not have to. Our past customers had made their buying decisions solely based on our provided data & photography. Having said that, please do not hesitate to reach out to our team if you have additional questions or concerns. Also, you are more than welcome to visit our yard to inspect the equipment before making any purchase decisions.
Reserve your machine! Happy with what you see? Great, our gorgeous website is fully capable of processing your order online. The first step is to ensure that you reserve the machine on your name so that it will not be available to the open market. We only require a non-refundable deposit in the amount of $1,000 (or $500 if equipment value is less than $20,000). We take your privacy and payment information confidentiality seriously, and we partner with industry-leading PayPal as our payment processor to securely process your reservation deposit online. You can also use Venmo or your credit/ debit card to pay for this deposit via our website if you do not have a PayPal account.
Paying for your machine! After you successfully reserve the machine, our system will send over an order confirmation to your email within 24 hours. A commercial invoice will follow shortly with your order details and payment instructions. Remaining balance plus sales tax (if applicable) is due via bank wire transfer within 48 hours (if the equipment is in stock) or 3 business days before ship date (if the equipment is arriving soon). If you are not familiar with wire transfer, this article from JP Morgan Chase here explains it in greater details. Electronic wire transfer has been a norm in the heavy equipment industry for large transactions, and any banks or credit unions should now offer it at minimal cost ($40 or less).
We also accept cash payment! If you prefer an "on-the-spot transaction" via cash or cashier's check, we will schedule our sales team member to meet with you in person to assist you at our yard in Long Beach, CA 90813. Please be aware that a combined sales tax rate (state, district, and local) of 10.25% (current as of March 2021) is applied to the order total if you wish to purchase and pick up the equipment at our yard in Long Beach, CA.
Time to ship your machine! After the final payment is cleared by our banking system, we will promptly email you a release form with your order information, your contact information, and your freight carrier (if applicable). This form is used by our yard crew to assist you with complimentary forklift loading assistance (if needed), and to permit equipment release from our facility. If you prefer to get your equipment shipped by us, we will coordinate all truck booking, check-in, and delivery on your behalf so you can enjoy a turn-key experience. All you have to do is to pay our trucking partner directly over the phone. We never mark up freight costs and resell shipping service to our customers!
We offer temporary storage until ship date! We allow complimentary storage up to 7 calendar days from the date of full payment settlement and when the machine becomes available. Storage fees will apply beyond this grace period at $20.00 per-calendar-day rate for a maximum of 15 calendar days. All equipments will be stored outdoor, and we are not held responsible for any weather-related damages or issues related to storing your equipment in the elements. If your equipment needs longer storage time for financing application approval or export logistics arrangements, please let us know so we can waive storage fees!
FAQ: Do you offer warranty?
Unfortunately, we do not currently offer any warranty programs for our excavators. Our sales are final upon a cleared payment. As a common industry practice for used heavy equipment, all of our products are sold "as is, where is" and does not come with any guarantees or warranties, expressed, written or implied. For more information, please refer to our official terms of sale per below.
Having said that, we are an established e-commerce heavy equipment seller with many happy customers, and their reviews of our products can be found publicly via Reviews.io public feedback platform:
FAQ: Do you charge sales tax?
We are a registered California LLC entity with a valid seller's permit (our seller permit number is 219894272). Thus, our California customers are required to pay all applicable state, district, and local sales tax, unless a valid tax exemption or resale certificate is provided. Sales tax is calculated based on delivery destination. We reserve the right to charge any and all applicable taxes as required by local jurisdictions.
For non-California buyers who pay for a licensed, independent, third-party freight carrier or freight broker to ship the purchased equipment to your non-California address, California sales taxes are exempt as long as a proper bill of lading is provided from the buyer's freight carrier. However, if out-of-state buyers decide not to use a third-party shipper, and wish to pick up the equipment in person at our yard, applicable California & Long Beach combined sales tax rate of 10.25% will be applied as described above without any exceptions.
Due to Supreme Court ruling in favor of South Dakota on June 21, 2018 on the landmark sales tax case of South Dakota v. Wayfair, an online seller must collect and remit sales tax on any sales delivered to a particular state where such seller have established a physical or economic nexus. Please be aware that as of March 2022, we have not established any physical nor economic nexuses with any states outside of California. Hence, it can be a significant saving for out-of-state customers who purchase equipment from our California yard because no sales tax will be collected. However, once we establish an economic nexus with any states, applicable sales tax will be collected on every sale made to that state.
FAQ: Do you offer financing?
Yes we do. We offer business equipment financing & consumer financing via our partnership with Taycor Financial. With offices in Los Angeles CA, Irvine CA, and Boston MA, Taycor Financial has been a part of business growth and development for nearly 30 years. Whether you are a startup business or a well established landmark in your community, Taycor has multiple financing programs that will fit your business needs. To get started, please complete your pre-approval financing application per below:
FAQ: How do I get parts?
Hesitation due to fear of part availability? The truth might surprise you. Most of our equipment are provided with part manuals at no extra charge. Depending on equipment make & model, we will also provide you with complimentary repair manual as well as operation/maintenance manual.
For part sourcing, we know the best domestic companies to source both OEM and aftermarket parts at competitive pricing to address your need. Please feel free to reach out directly to the following companies:
Tracks & Undercarriage:
FAQ: Do you offer extra attachments?
We offer a variety of excavator attachments such as teeth buckets (dirt teeth or rock teeth), smooth edge cleaning buckets, and root rate buckets. However, please be aware that we do not fabricate buckets in Long Beach, CA. All of our manufacturing takes place overseas; thus, it only makes sense economically and logistically to ship your extra buckets with your machine in the same container as well as the on the same truck from Long Beach, CA to your home address. We offer standard sizes of 12", 18", 24", 30", and 36" for $600, $700, $800, $900, and $1,000, respectively (applicable for teeth, smooth edge, or root rake style). In addition, please note that we ONLY offer these buckets at these pricing above if you pre-order your machine at least 5 business days before it is scheduled to depart Japan. Pricing includes new bucket & teeth, installation labor cost, and ocean shipping to Long Beach, CA. All of our buckets are pin-on style and are NOT made to work with quick couplers.
