This 1983-built Komatsu PC10-3 is a professionally reconditioned mini excavator with its 1,980 Kg (4,366 pounds) operating weight. It only has 3,660 hours, and in great running condition with normal wear and tear as shown on our transparent photos and demonstration video. The machine is powered by a Yanmar-manufactured diesel engine (3D75-1A) which is capable of delivering 17.5 HP. This unit has been modified to adopt Caterpillar (S.A.E) control pattern by default

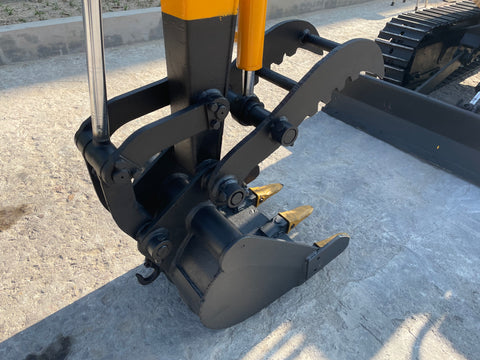

This unit has been thoroughly serviced with new hydraulic fluids, new engine oils, new coolant with antifreeze, and new filters (air, fuel, and oil). We have upgraded the excavator with new foot-pedal-controlled hydraulic thumb, new seat & seat belt, new starting battery, new LED headlight, new decals, and vivid Komatsu-yellow paint. As required by U.S. CBP importing requirements, this unit has undergone strict fumigation and steam cleaning.
- Operation & Maintenance: Click Here
- Shop & Repair: Click Here
- Excavator Parts: Click Here
- Engine Parts: 3D75-1A
- Make: Komatsu
- Model: PC10-3
- Serial #: 5976

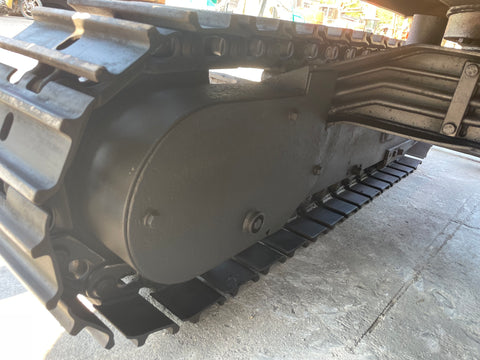

- Track: Steel (used)
- Year built: 1983
- Hour meter: 3,660
- Origin: Japan
- Operating weight: 1,980 Kg (4,366 lbs)
- Bucket digging force: 1,540 Kg (3,395 lbs)
- Max ground pressure: 0.27 Kg/cm2 (3.8 psi)
- Swing speed: 11.0 rpm
- Swing max slope angle: 23 deg.
- Travel speed: 1.7 kmh (1.1 mph)
- Gradeability: 30 deg.

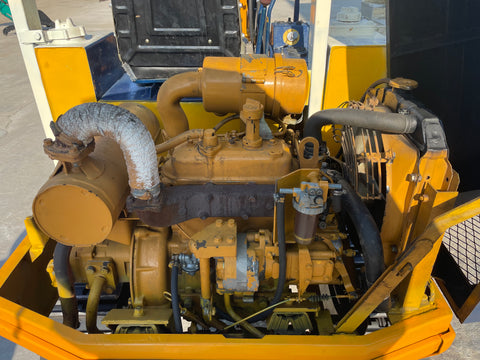

- Make: Komatsu
- Serial #: 02552
- Fuel: Diesel
- Model: 3D75-1A (4-cycle, water-cooled, in-line, vertical turbulence chamber)
- No. of cylinders - bore x stroke: 3 - 75 mm x 84 mm (3.0" x 3.3")
- Piston displacement: 1.126 L (68.7 cu.in.)
- Firing order: 3-1-2
- Flywheel horsepower: 17.5 HP @ 2,200 RPM
- Max torque: 6.0 Kgm @ 1,700 rpm
- Max speed at no load (high idling): 2,400 rpm
- Min speed at no load (low idling): 900 rpm
- Min fuel consumption: 185 g/HP.h
- Alternator: 24V, 20A
- Starting Motor: 24V, 2.1 kW

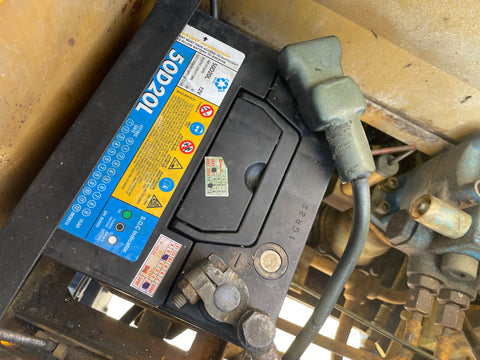

- Battery: 12V, 70Ah x 1
Fuel, Lubricating Oil, and Coolant
- Fuel: 25 Liter (6.6 US gallon)
- Hydraulic Oil (tank oil level): 29 Liter (7.7 US gallon)
- Hydraulic Oil (total system): 46 Liter (12.2 US gallon)
- Engine Oil (minimum): ? Liter (? US gallon)
- Engine Oil (maximum): 4.2 Liter (1.1 US gallon)
- Coolant: 4.2 Liter (1.1 US gallon)
OEM Working Range
- Overall Length: 3,800 mm (12'6")
- Overall Width: 1,380 mm (4'6")
- Overall Height: 2,300 mm (7'7")
- Backfill Blade Width: 1,380 mm (4'6")
- Backfill Blade Height: 290 mm (0'11")
- Bucket Width: 420 mm (1'5")
- Thumb Width: 230 mm (0'9")
- Track Width: 250 mm (0'10")
- Track Length: 1,780 mm (5'10")
- Track Standard: 250mm (W) x 52.5mm (P) x 76 (L)
- Boom Cylinder: 440 mm (17.3")
- Arm Cylinder: 430 mm (16.9")
- Bucket Cylinder: 380 mm (15.0")
- Thumb Cylinder: 300 mm (11.8")
OEM Lifting Capacity
