This 1995-built Komatsu PC38UU-2 is a professionally reconditioned mini excavator with its 3,690 Kg (8,136 pounds) operating weight. It only has 3,857 hours, and in great running condition with normal wear and tear as shown on our transparent photos and demonstration video. The machine is powered by a Yanmar-manufactured diesel engine (3TN84) which is capable of delivering 30 HP. This unit has been modified to adopt Caterpillar (S.A.E) control pattern by default. Reverting to original Komatsu (Japanese) control pattern is also possible.
This unit has been thoroughly serviced with new hydraulic fluids, new engine oils, new coolant with antifreeze, and new filters (air, fuel, and oil). We have upgraded the excavator with new foot-pedal-controlled hydraulic thumb, new seat & seat belt, new starting battery, new LED headlight, new decals, and vivid Caterpillar-yellow paint. As required by U.S. CBP importing requirements, this unit has undergone strict fumigation and steam cleaning.
This model has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This model is qualified as a zero-tail swing machine with its 1475-mm upper body, 1740-mm overall width, and a tail swing radius of 870 mm (2'10"). This unit also comes with dual speed travel with high speed of 2.1 mph and low speed of 1.4 mph.
With Japanese ingenuity of applying sound-absorbing material to various parts of the machine, low noise performance comparable to that of a passenger car has been achieved. This model is designed for night work and urban areas such as schools and hospitals with noise level rated at 58 dBA @ 30 meter (98'5") and 67 dBA @ 7 meter (23'0"). To operator's ears, noise exposure is rated at only 77 dBA.
- Operation & Maintenance: Available for Customer Only
- Shop & Repair: Not Available
- Excavator Parts: Available for Customer Only
- Engine Parts: Available for Customer Only
- Make: Komatsu
- Model: PC38UU-2
- Serial #: 4479

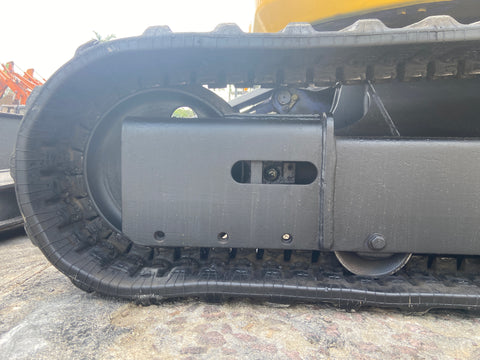

- Track: Rubber (used)
- Year built: 1995
- Hour meter: 3,857
- Origin: Japan
- Operating weight: 3,470 Kg (7,651 lbs)
- Bucket digging force: 2,700 Kg (5,952 lbs)
- Max ground pressure: 0.38 Kg/cm2 (5.4 psi)
- Swing speed: 10.0 rpm
- Swing max slope angle: ? deg.
- Travel speed (rubber tracks): 3.4 kmh (2.1 mph) & 2.2 kmh (1.4 mph)
- Travel speed (steel tracks): 3.2 kmh (2.0 mph) & 2.0 kmh (1.2 mph)
- Gradeability: 30 deg.
- Make: Komatsu
- Serial #: Unknown
- Fuel: Diesel
- Model: 3TN84 (direct injection type)
- No. of cylinders - bore x stroke: ?
- Piston displacement: 1.429 L (87.2 cu.in.)
- Firing order: ?
- Flywheel horsepower: 30.0 HP @ 2,700 RPM
- Max torque: ? Kgm @ ? rpm
- Max speed at no load (high idling) : ? rpm
- Min speed at no load (low idling): ? rpm
- Min fuel consumption: ? g/HP.h
- Alternator: ?
- Starting Motor: ?
- Battery: ?
Fuel, Lubricating Oil, and Coolant
- Fuel: 35 Liter (9.2 US gallon)
- Hydraulic Oil (tank oil level): ?
- Hydraulic Oil (total system): 54 Liter (14.3 US gallon)
- Engine Oil (minimum): ?
- Engine Oil (maximum): 7.8 Liter (2.1 US gallon)
- Coolant: 4.8 Liter (1.3 US gallon)
OEM Working Range
- Transport Length: 4,060 mm (13'4")
- Transport Width: 1,740 mm (5'9")
- Transport Height: 2,420 mm (7'11")
- Backfill Blade Width: 1,740 mm (5'9")
- Backfill Blade Height: 300 mm (1'0")
- Bucket Width: 515 mm (1'8")
- Thumb Width: 270 mm (0'11")
- Track Width: 300 mm (1'0")
- Track Length: 2,050 mm (6'9")
- Track Standard: 300mm (W) x 52.5mm (P) x 84 (L)
- Boom Cylinder: 710 mm (28.0")
- Arm Cylinder: 540 mm (21.3")
- Bucket Cylinder: 480 mm (18.9")
- Thumb Cylinder: 290 mm (11.4")
