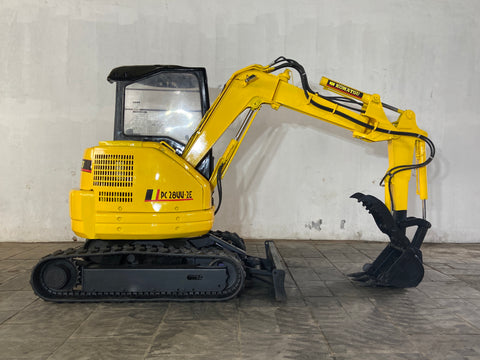

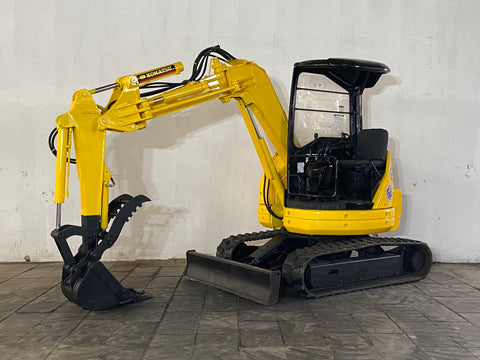

This 1995-built Komatsu PC28UU-2E is a professionally reconditioned mini excavator with its 2,740 Kg (6,042 pounds) operating weight. It only has 4,120 hours, and in great running condition with normal wear and tear as shown on our transparent photos and demonstration video. The machine is powered by a Yanmar-manufactured diesel engine (3D82AE-3D) which is capable of delivering 24.3 HP. This unit has been modified to adopt Caterpillar (S.A.E) control pattern by default. Reverting to original Komatsu (Japanese) control pattern is also possible.
This unit has been thoroughly serviced with new hydraulic fluids, new engine oils, new coolant with antifreeze, and new filters (air, fuel, and oil). We have upgraded the excavator with new foot-pedal-controlled hydraulic thumb, new seat & seat belt, new starting battery, new LED headlight, new decals, and vivid Caterpillar-yellow paint. As required by U.S. CBP importing requirements, this unit has undergone strict fumigation and steam cleaning.
This model has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This model is qualified as a zero-tail swing machine with its 1480-mm upper body, 1520-mm overall width, and a tail swing radius of 760 mm (2'6"). This unit comes with single speed travel of 1.4 mph.
With Japanese ingenuity of applying sound-absorbing material to various parts of the machine, low noise performance comparable to that of a passenger car has been achieved. This model is designed for night work and urban areas such as schools and hospitals with noise level rated at 54 dBA @ 30 meter (98'5") and 65 dBA @ 7 meter (23'0"). To operator's ears, noise exposure is rated at only 77 dBA.
- Operation & Maintenance: Available for Customer Only
- Shop & Repair: Not Available
- Excavator Parts: Available for Customer Only
- Engine Parts: Available for Customer Only
- Make: Komatsu
- Model: PC28UU-2E
- Serial #: 11310
- Track: Rubber (BRAND NEW) - $2,000 Extra Upgrade Cost
- Year Built: 1995
- Hour Meter: 4,120
- Origin: Japan
- Operating weight: 2,740 Kg (6,042 lbs)
- Bucket digging force: 2,140 Kg (4,718 lbs)
- Max ground pressure: 0.28 Kg/cm2 (4.0 psi)
- Swing speed: 10.0 rpm
- Swing max slope angle: ? deg.
- Travel speed: 2.4 kmh (1.5 mph)
- Gradeability: ? deg.
- Make: Komatsu
- Serial #: 02017
- Fuel: Diesel
- Model: 3D82AE-3D
- No. of cylinders - bore x stroke: ?
- Piston displacement: 1.330 L (81.2 cu.in.)
- Firing order: ?
- Flywheel horsepower: 24.3 HP @ 2,450 RPM
- Max torque: ? Kgm @ ? rpm
- Max speed at no load (high idling): ? rpm
- Min speed at no load (low idling): ? rpm
- Min fuel consumption: ? g/HP.h
- Alternator: 12V, 40A
- Starting Motor: 12V, 1.8 kW
- Battery: 12V, 70Ah x 1
OEM Working Range
- Overall Length: 3,940 mm (12'11")
- Overall Width: 1,520 mm (5'0")
- Overall Height: 2,400 mm (7'10")
- Backfill Blade Width: 1,520 mm (5'0")
- Backfill Blade Height: 285 mm (0'11")
- Bucket Width: 435 mm (1'5")
- Thumb Width: 315 mm (1'0")
- Track Width: 300 mm (1'0")
- Track Length: 1,940 mm (6'4")
- Track Standard: 300mm (W) x 52.5mm (P) x 80 (L)
- Boom Cylinder: 670 mm (26.4")
- Arm Cylinder: 460 mm (18.1")
- Bucket Cylinder: 450 mm (17.7")
- Thumb Cylinder: 280 mm (11.0")
