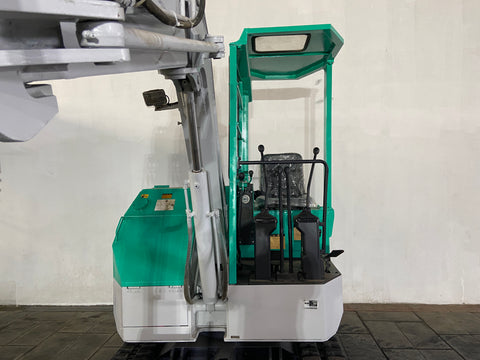

This 1990-built Komatsu PC28UU compact excavator with 6,600-pound operating weight has been professionally reconditioned and thoroughly serviced. It only has 2,729 hours, and the machine is in great running condition with minor cosmetic wear and tear as shown on our photos and demonstration video. This machine is equipped with a Komatsu 3D78-1F diesel engine delivering 23.3 horsepower. The unit has been upgraded with new hydraulic thumb, new Panasonic starting battery, new seat & seat belt, new decals, and new paint.
This Komatsu PC28UU has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This PC28UU is also a reduced-tail swing machine with its 1495-mm upper body, 1450-mm overall width, and a tail swing radius of 790 mm (2'7"). This machine also comes with a quick valve shifter that switches between SAE (a.k.a. CAT, backhoe) and Japanese (a.k.a. Komatsu) control patterns.
- Operation & Maintenance: Available for Customer Only
- Shop & Repair: Available for Customer Only
- Excavator Parts: Available for Customer Only
- Engine Parts: Available for Customer Only
- Make: Komatsu
- Model: PC28UU
- Serial #: 5363

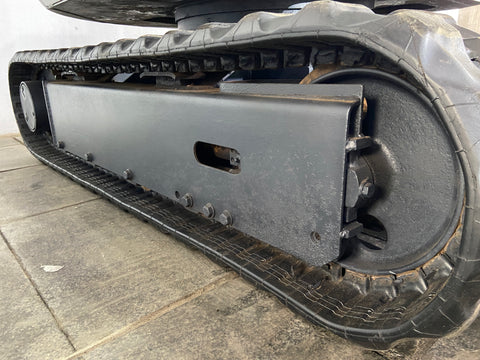

- Track: Rubber (used)
- Year built: 1990
- Hour meter: 2,729
- Origin: Japan
- Operating weight: 2,980 Kg (6,571 lbs)
- Swing speed: 9.5 rpm
- Swing max slope angle: ? deg.
- Travel speed: 2.0 kmh (1.2 mph)
- Gradeability: 30 deg.
- Make: Komatsu
- Serial #: 09463
- Fuel: Diesel
- Model: 3D78-1F (4-cycle, water-cooled, direct injection)
- No. of cylinders - bore x stroke: ?
- Piston displacement: 1.232 L (75.2 cu.in.)
- Firing order: ?
- Flywheel horsepower: 23.3 HP @ ? RPM
- Max torque: ? Kgm @ ? rpm
- Max speed at no load (high idling) : ? rpm
- Min speed at no load (low idling): ? rpm
- Min fuel consumption: ? g/HP.h
- Alternator: ?
- Starting Motor: ?
- Battery: ?
OEM Working Range
- Overall Length: 3,790 mm (12'5")
- Overall Width: 1,495 mm (4'11")
- Overall Height: 2,380 mm (7'10")
- Backfill Blade Width: 1,495 mm (4'11")
- Backfill Blade Height: 330 mm (1'1")
- Bucket Width: 450 mm (1'6")
- Thumb Width: 300 mm (1'0")
- Track Width: 250 mm (0'10")
- Track Length: 1,950 mm (6'5")
- Track Standard: 250mm or 300mm (W) x 52.5mm (P) x 80 (L)
- Boom Cylinder: 702 mm (27.6")
- Arm Cylinder: 444 mm (17.5")
- Bucket Cylinder: 424 mm (16.7")
- Thumb Cylinder: 300 mm (11.8")
